Tiny Droplets

March 6, 2012

Even when we ignore the chemistry of the liquid itself, there's much interesting science in a droplet. Ignoring the mechanics of the droplet fluid, there are still two important properties of liquid droplets. The first is the surface tension, which affects the contact angle of a droplet on a surface. The second is the observation that the ratio of the surface area to the volume of a sphere is a function of 1/r, where r is the radius. This means that surface effects are extremely important as droplets become smaller in size.

Mercury droplets (NIH) Since evaporation rate depends on the surface area, this means that a volume of liquid partitioned into many small droplets will evaporate much faster than when it's collected into a single large droplet. That's what makes a spill of mercury dangerous. The surface tension of mercury is very high, 485 mN/m, as compared to 72 mN/m for water, so the liquid breaks into many small droplets when it impacts a hard surface, as can be seen in the figure.

As the world shifts into
nano-mode, much more research is being done on small droplets. One study, by scientists at Princeton University's Department of Mechanical and Aerospace Engineering, the Institut Jean le Rond d'Alembert (Paris) and the University of Paris, has investigated how droplets wet flexible fibers. This process is important in both natural systems, such as foliage and avian plumage, and industrial systems that include fibrous media.[1-2]

The research team investigated the common case of droplets sitting on adjacent fibers. In their experiments, they clamped flexible glass fibers at one end, placed droplets at the clamped end, and recorded the droplets as they moved to the free end. The mechanical properties of the fibers are important, since their high aspect ratios, combined with their elasticity, allows the surface tension of the droplets to draw the fibers together when they roll to areas with narrower gap.

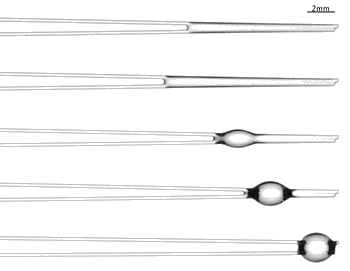

Figure caption

Oil drops on flexible fibers.

Droplets below a critical size will spread between the fibers, but larger droplets are sessile on the fibers.

Princeton University image by Camille Duprat and Suzie Protière.

(Used with permission)


Small droplets pulled the fibers together to wet them along long segments, but it was found that there was a critical droplet volume beyond which this process did not occur; that is, the droplets remained intact, sitting atop the fibers (see photograph).[1-2]

Said Howard Stone, a coauthor of a paper on this study that appeared in Nature,
"If in any engineering problem you can learn an optimal size above which something does not happen, you have learned something very important about the system."[1]

Just about every process in the world relates to minimizing energy, and the droplet-fiber system is no exception. droplets spread when the liquid has less surface energy in forming a film between the fibers than remaining as a drop.[1] This research, sponsored by Unilever, can have application for the production of optimal hairspray delivery systems; or, in the self-assembly of micro- and nano-structures.[1]

Another research team, from the Massachusetts Institute of Technology Department of Mechanical Engineering and the Stokes Institute, the University of Limerick (Limerick, Ireland), has been investigating the condensation and evaporation of droplets from textured surfaces; specifically, superhydrophobic surfaces.[3-5] The textures are designed to favor the formation of suspended droplets atop nanostructures. The suspended droplets have minimal contact to the surface, which promotes shedding. Shedding would otherwise occur at a characteristic capillary length.[4] This is an application of Cassie's law, which expresses the fact that rough surfaces will support droplets with high apparent contact angle, thereby enhancing hydrophobicity.

Thw mechanism for droplet detachment from a surface without nanostructure requires the growth of the droplet to a size at which gravity or other forces overcome the surface tension that holds the droplet on the surface. This mechanism often proceeds by adjacent droplets merging to form a larger droplet.[3]

Faster droplet shedding would aid to removal of heat from surfaces, but droplets sitting on nanostructures have reduced contact with the surface, so heat transfer is impeded. The MIT-Limerick study investigated the heat transfer as it is affected by the surface contact of droplets. The research team imaged droplets using environmental scanning electron microscopy, and they found that in condensation the initial droplet growth rates of partially wetting droplets were six times larger than that of droplets suspended on nanopillars.[4]

The partially wetting droplets sit on nanopillars and wet just a small area of the surface, but this action is highly dependent on the size, spacing, width-to-height ratios and nanoscale roughness of the pillars.[3] Partially wetting droplets had a four-six times higher heat transfer rate than that of droplets suspended at the pillar tips. The nanostructured surfaces had about a fifty percent enhancement of heat removal, compared with flat hydrophobic surfaces, when the droplets were partially wetting; and about a seventy percent degradation of heat removal when the droplets were suspended.[3-4]

Figure caption

A mix of droplet types and sizes on a nanotextured surface. (Screen capture from a YouTube video))


Such research is important to improvements in many processes, including desalination plants and the many applications requiring heat transfer from solids to liquids. Such heat transfer applications include systems that use solar energy to evaporate water. Obvious applications are cooling semiconductor circuits and improvement of heat pipes. The research was supported by the U.S. Department of Energy,[3] and the results are published in the journal, ACS Nano.[4]

References:

  1. John Sullivan, "Less is more: Study of tiny droplets could have big applications," Princeton University Press Release, February 23, 2012.
  2. C. Duprat, S. Protière, A. Y. Beebe and H. A. Stone, "Wetting of flexible fibre arrays," Nature, vol. 482, no. 7386 (February 23, 2012), pp. 510-513. Supplementary Movie for Ref. 2, showing the evolution of a drop of two microliters volume on a rail formed by two fibres of 4 centimeter length, separated by 0.76 mm (11.5Mb file).
  3. David L. Chandler, "New nanopatterned surfaces could improve the efficiency of powerplants and desalination systems," MIT News Office Press Release, February 23, 2012.
  4. Nenad Miljkovic, Ryan Enright and Evelyn N. Wang, "Effect of Droplet Morphology on Growth Dynamics and Heat Transfer during Condensation on Superhydrophobic Nanostructured Surfaces," ACS Nano, vol. 6,no. 2 (January 31, 2012), pp 1776-1785.
  5. Nenad Miljkovic, "Making Nanodroplets Drop Faster," (Music by Alastair Cameron), YouTube Video by MITNewsOffice, Feb 22, 2012. "MIT mechanical engineering graduate student Nenad Miljkovic discusses his team's work on condensation, nanodroplet formation, and new nanopatterned surfaces that could boost the efficiency of power plants and desalination systems."
